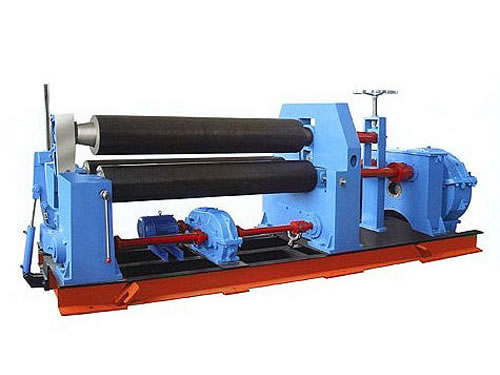

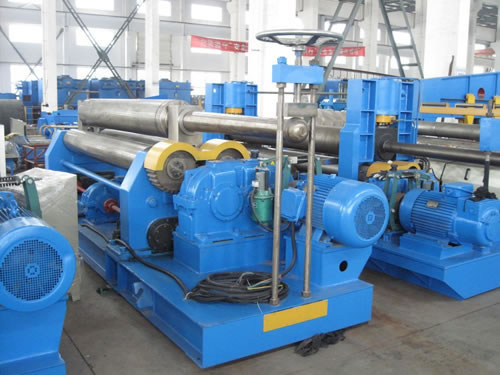

Top Roll Adjusting Steel Plate Bending Machine

Introduction

Rontech Imp & Exp Co., Ltd is a specialized China supplier providing top roll adjusting steel plate bending machines for customers all over the world. In addition to this hydraulic bending machine, we also supply cold roll forming machinery, high frequency welded pipe mill, sandwich panel line, steel coil slitting line, cut to length line, shot blasting machine, metal coil sheet, etc. We have a professional technical team, some of who have more than 15 years’ working experience and predominant R & D ability. We can provide reliable and durable steel plate bending machines to our customers. Our hydraulic bending machines have been exported to Russian, Brazil, India, South Africa, Germany, USA, Mexico, Saudi Arabia, etc.

Features of Top Roll Adjusting Steel Plate Bending Machine

• The rotating of two bottom rollers provides torque for rolling plate. The reducer gear joggles with the gear for bottom rollers to transfer torque for rotating two bottom rollers.
• The top roller of this hydraulic bending machine moves vertically at the center position of bottom two rollers. It can be adjusted by screw transmission.
• This steel plate bending machine needs other assistant equipment to pre-bend plates.

Specifications of Top Roll Adjusting Hydraulic Bending Machine

Model	Max. Plate Thickness (mm)	Max. Plate Width (mm)	Plate Yield Limit (MPa)	Roll Speed (m/min)	Min. Diameter of Max. Plate Thickness (mm)	Upper Roller Diameter (mm)	Bottom Roller Diameter (mm)	Two Bottom Rollers Center Space (mm)	Main Motor Power (kw)	Weight (ton)	Dimension L × W × H
SW11-6×1500	6	1500	245	5.5	380	180	160	210	5.5	2.6	3100 × 980 × 1300
SW11-6×2000	6	2000	245	5.5	380	180	160	220	5.5	3.8	3500 × 980 × 1300
SW11-6×2500	6	2500	245	5.6	450	210	180	260	7.5	4.7	4120 × 1030 × 1310
SW11-6×3000	6	3000	245	5.5	600	240	200	310	11	7.5	5720 × 1390 × 1700
SW11-8×2000	8	2000	245	5.6	450	200	180	260	7.5	4.9	4600 × 1030 × 1300
SW11-8×2500	8	2500	245	5.5	500	230	200	310	11	0.7	4830 × 1300 × 1650
SW11-12×2000	12	2000	245	5.6	600	220	200	310	11	6.3	4600 × 1300 × 1650
SW11-12×2500	12	2500	245	5.5	650	250	220	340	15	7.1	4900 × 1450 × 1680
SW11-12×3000	12	3000	245	6	750	280	240	360	22	11.1	5500 × 1450 × 1680
SW11-16×2000	16	2000	245	5.8	650	240	220	340	15	6.8	4400 × 1350 × 1600
SW11-16×2500	16	2500	245	6	750	280	240	360	22	8.1	4900 × 1450 × 1680
SW11-16×3200	16	3200	245	5	900	320	280	440	30	12.2	5830 × 1620 × 1730
SW11-20×2000	20	2000	245	6	750	280	240	360	15	8	4400 × 1450 × 1680
SW11-20×2500	20	2500	245	5	850	320	280	440	30	14.7	5900 × 1830 × 1810
SW11-25×2000	25	2000	245	5	850	320	280	440	30	13.2	5400 × 1830 × 1810
SW11-25×2500	25	2500	245	4.5	900	360	300	490	37	15.7
SW11-30×2000	30	2000	245	4.5	900	360	300	490	37
SW11-30×2500	30	2500	245	4.5	1100	410	360	600	45

Remark: Material yield strength is designed for 245 Mpa. If this steel plate bending machine needs to be improved, it must be subject to official offer.
